Next-Gen Power Delivery: 12+2+1 phase digital power design with Dr.MOS ensures rock-solid stability for high-performance Ryzen 7000/8000/9000 series CPUs.

Blazing DDR5 Support: Supports DDR5 memory up to 7200+ MHz (OC), unlocking extreme bandwidth for next-level multitasking and gaming.

Full-Speed Expansion: Equipped with PCIe 5.0 x16 and dual M.2 PCIe 4.0 slots—because bottlenecks are so last season.

Dual USB-C & 2.5G Wi-Fi: High-speed data and ultra-fast networking out of the box—zero lag, zero excuses.

Armor-Grade Build with RGB Flair: Reinforced PCIe slot, enhanced PCB durability, and customizable MAXSUN SYNC lighting because power should look powerful too.

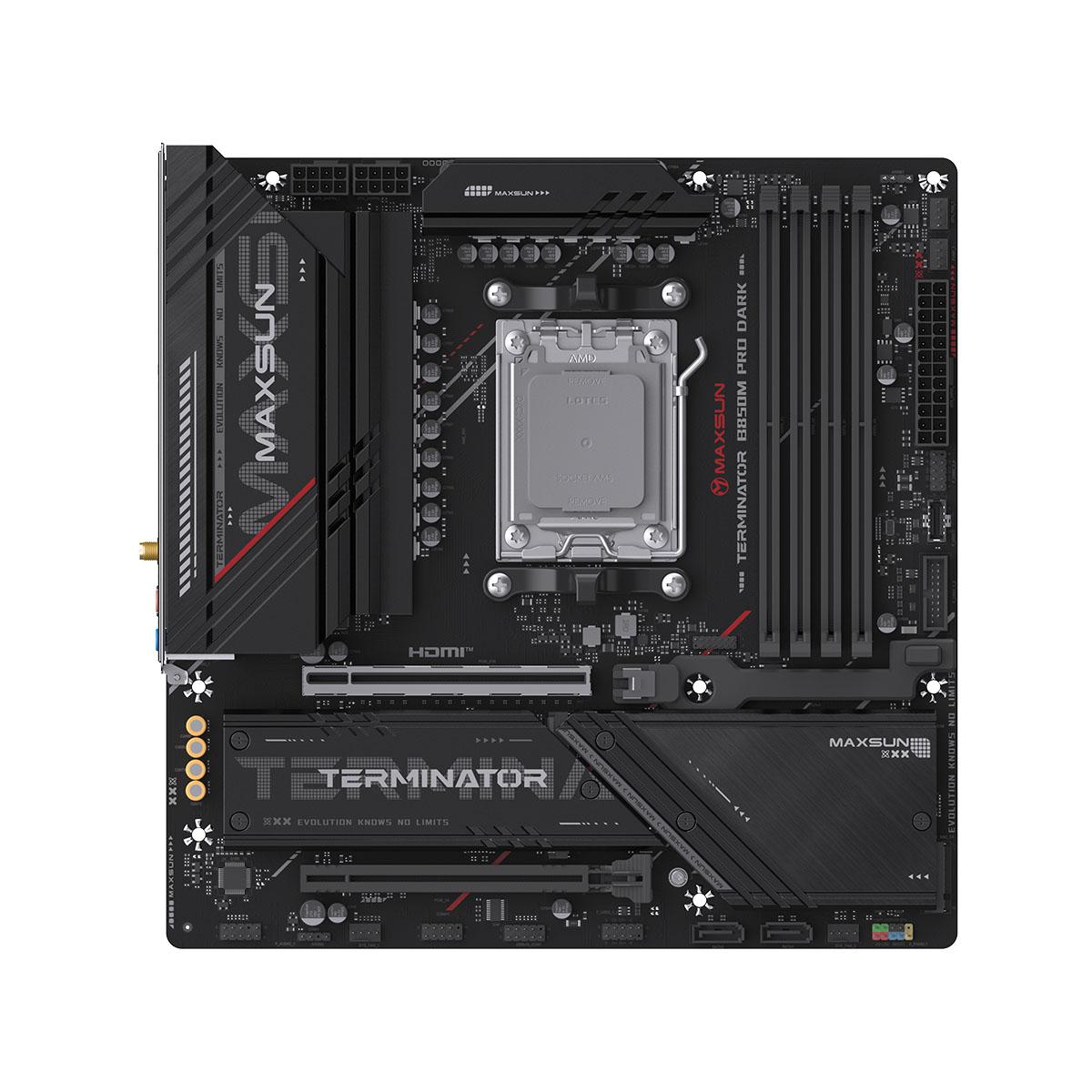

• Model

• MS-Terminator B850M PRO DARK WIFI

• Form Factor

• Micro ATX (245 × 245 mm)

• CPU Socket

• AMD AM5 socket, compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors

• Chipset

• AMD B850 Chipset

• Memory

• 4× DIMM DDR5 slots, up to 192GB total capacity
  Supports dual-channel memory architecture
  Supports AMD EXPO memory overclocking
  Supported frequencies:
  4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

• Display Outputs

• 1× DP port, supports up to 4K @ 60Hz resolution
  1× HDMI 1.4 port, supports up to 4K @ 30Hz resolution

• Expansion Slots

• 1× PCIe x16 slot (supports PCIe 5.0 x16 mode)
  1× PCIe x16 slot (supports PCIe 4.0 x4 mode)

• Audio

• Integrated Realtek ALC897 audio codec

• Networking

• 1× Realtek RTL8125D 2.5G Ethernet port
  1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2

• Storage

• M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length
  M.2_B slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length
  M.2_C slot (Key M): supports PCIe 4.0 x2 mode, 2280 length

• USB

• Onboard USB (7 total):
  1× USB 5G 19-pin header (supports 2 additional USB 5G ports)
  2× USB 2.0 9-pin headers (support 4 additional USB 2.0 ports)
  1× USB 10G Type-C front panel port

  Rear I/O USB (9 total):
  4× USB 5G Type-A ports
  4× USB 2.0 Type-A ports
  1× USB 10G Type-C port

• Other Features

• 1× 24-pin ATX power connector
  2× 8-pin +12V CPU power connectors
  1× 4-pin CPU_FAN header
  1× 4-pin PUMP header
  2× 4-pin SYS_FAN headers
  2× 3-pin 5V ARGB headers
  1× CLR_CMOS quick-access button
