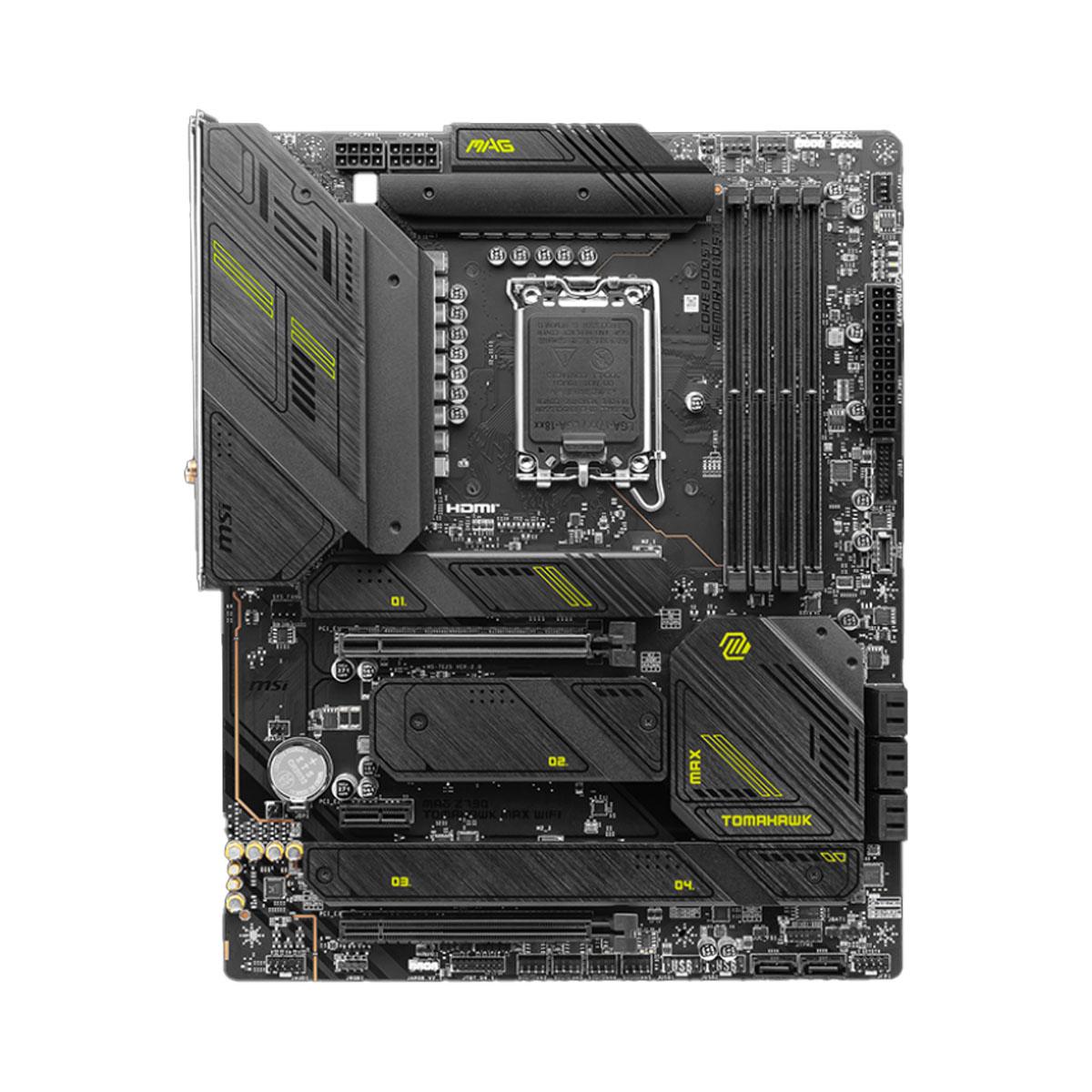

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

Supports DDR5 Memory, up to 7800+(OC) MHz

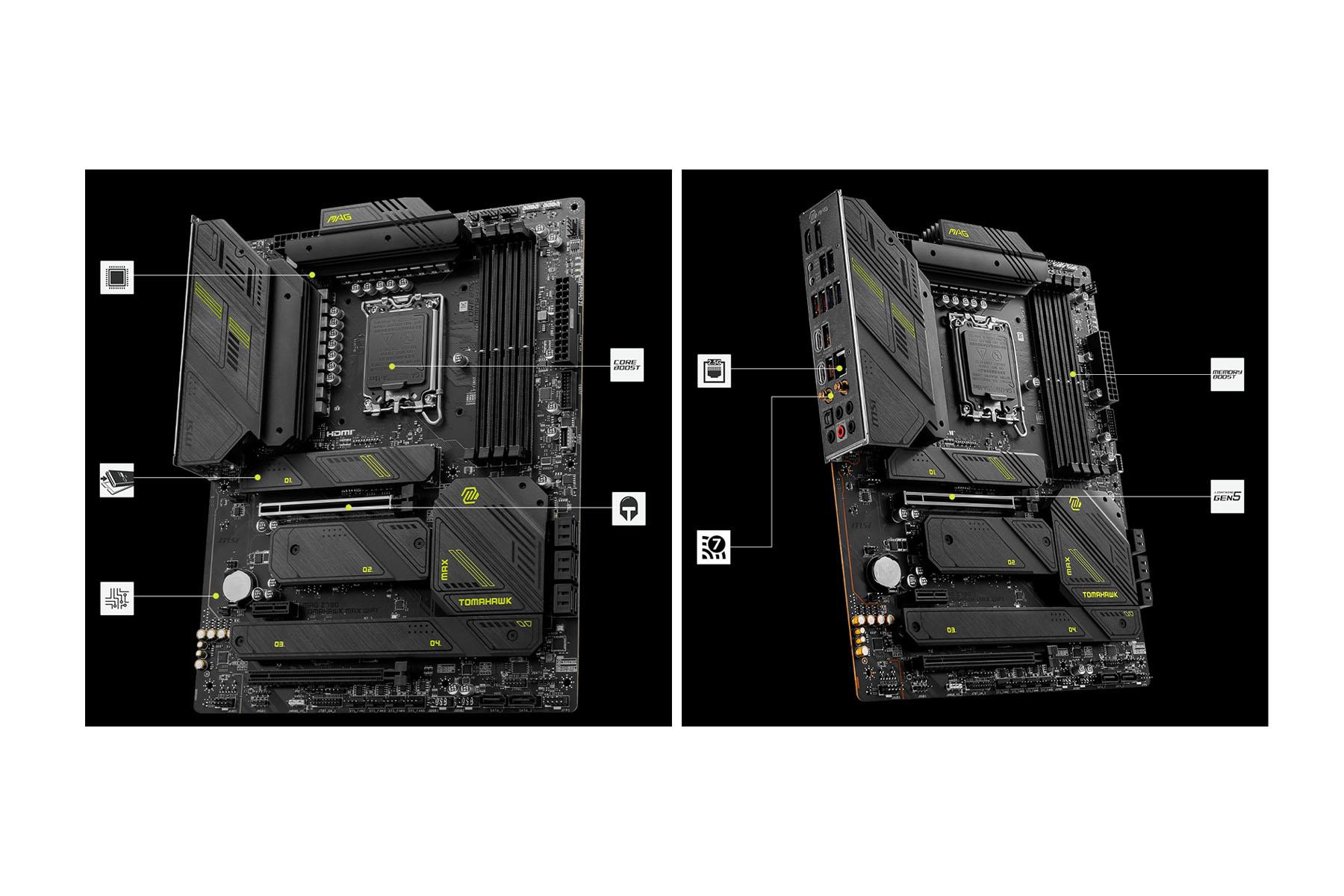

Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2x2

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSET - INTEL Z790

CPU - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

ONBOARD GRAPHICS - 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

BACK PANEL PORTS -

1. Display Port

2. USB 3.2 Gen 1 5 Gbps (Type-A)

3. USB 3.2 Gen 2 10Gbps (Type-A)

4. 2.5G LAN

5. Wi-Fi / Bluetooth

6. Audio Connectors

7. HDMI™

8. Clear CMOS

9. Flash BIOS

10. USB 3.2 Gen 2 10Gbps (Type-A)

11. USB 3.2 Gen 2 10Gbps (Type-C)

12. USB 3.2 Gen 2x2 20Gbps (Type-C)

WIRELESS LAN & BLUETOOTH - Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth^® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

AUDIO - Realtek^® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
